Typhoenix PU Sponge Tape or Foam tape for Automotive wiring
|
Product name Inspection items |
PU sponge tape |
|||
|
Standard requirements |
Measured value |
Inspection method |
||
|
appearance |
Flat surface and neat edge Sponge particles should be uniform No shortage of materials No cracking and falling off No obvious discoloration on the surface |
Flat surface and neat edge Sponge particles should be uniform No shortage of materials No cracking and falling off No obvious discoloration on the surface |
Visual inspection |
|
|
Apparent density |
18±3kg/m³ |
17.9kg/m³ |
GB/T 6343-2009 |
|
|
tensile strength |
≥0.05MPa |
0.08MPa |
GB/T 6344-2008 |
|
|
elongation at break |
≥100% |
118% |
GB/T 6344-2008 |
|
|
surface hardness |
Compression 25% |
≥50N |
80N |
GB/T 10807-2006 |
|
Compression 40% |
≥70N |
98N |
||
|
Compression 60% |
≥100N |
150N |
||
|
Compression set |
≤8% |
4% |
GB/ T6669-2008 |
|
|
tear strength |
≥1.5N/cm |
1.7N/cm |
GB/T 10808-2006 |
|
|
Adhesion requirements |
≥15N/24mm |
18.5N/24mm |
GB/T 2792-2014 |
|
|
Inspection results |
PASS |
|||

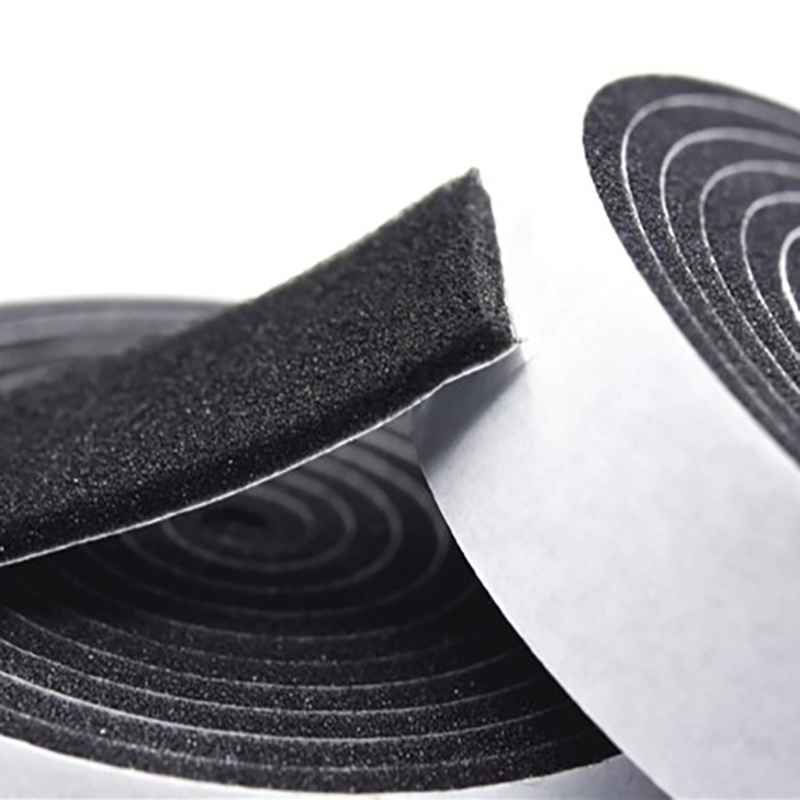

Name: Sponge Tape / Foam Tape
Material: Polyurethane (PU)
Adhesive: Acrylic acid
Color: Black, Grey
Width, Length and Thickness could be customized
Conventional sponge tape and PU sponge tape
The conventional sponge tape for automobile wire harnesses is made of high-density flame-retardant sponge as the base material and coated with special pressure-sensitive adhesive after technical treatment, to achieve the effect of shock absorption and noise reduction.
The base material of polyurethane (PU) sponge tape is polyether polyol and binary and ternary organic isocyanate, and the adhesive is polyacrylate pressure-sensitive adhesive, with a thickness of 2-5mm. Polyacrylate has strong adhesion and can also adapt to humid environments, high temperatures or heating conditions.
Ten advantages of PU sponge tape
✔ Very sound insulation and absorption
✔ Super shock absorption and noise reduction
✔ Strong water resistance
✔ Stable low temperature resistance
✔ Good flame retardancy
✔ Antibacterial
✔ Excellent aging resistance
✔ Strong impact resistance
✔ Aging resistance
✔ Good extensibility
Our characteristics

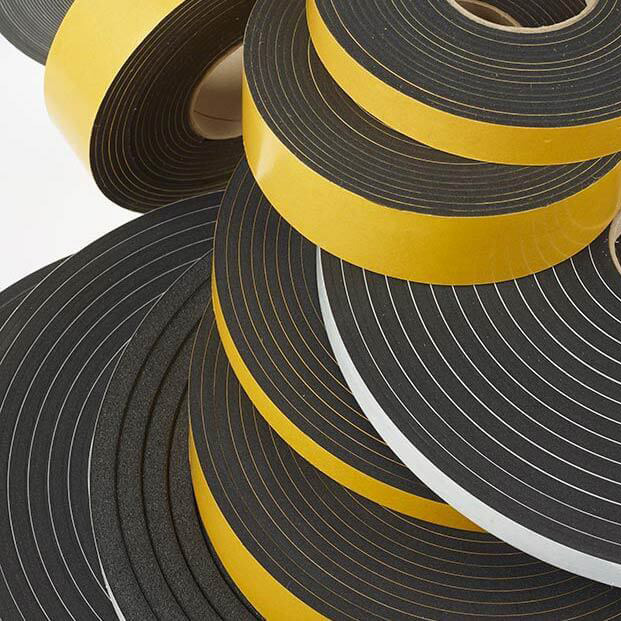

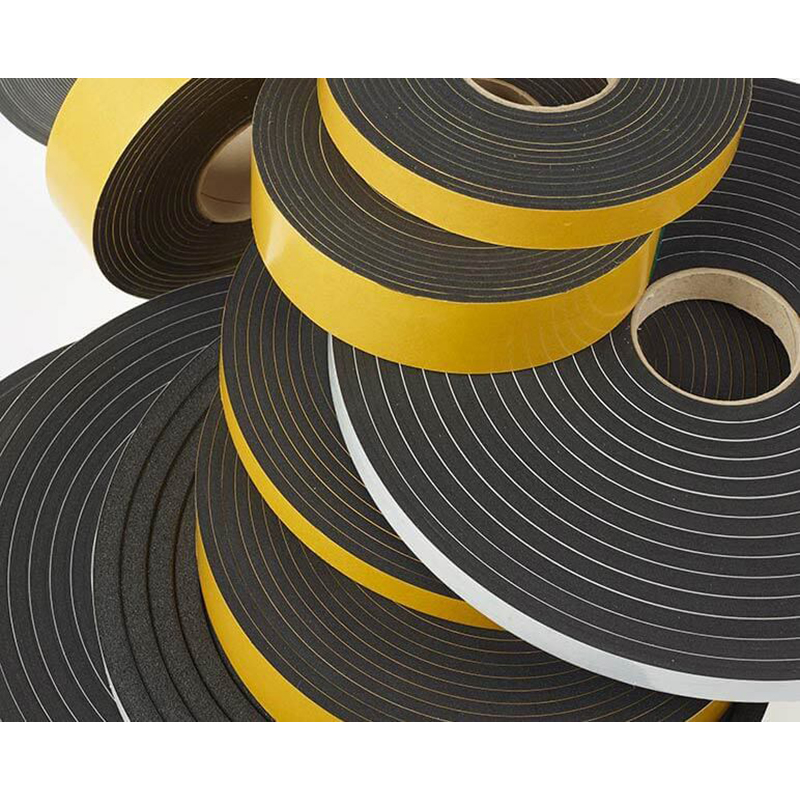

☞ There are various thickness, density and color options
☞ It can be rolled or die cut into various shapes
☞ The glue surface shall be flat, and there shall be no lack of glue on the glued surface
☞ High quality materials, the surface is flat and the section is smooth
What is the foam tape used for?
Ordinary PVC tape (high temperature resistant 85 ~ 105 ℃) can be used to bind or fix the harness to meet the requirements. In some special cases, sponge tape needs to be used:
1. When the harness is in direct contact with hard materials, but the harness cannot be completely fixed locally, sponge tape shall be used locally for cushioning, shock absorption, sound absorption and noise reduction.
2. If the harness plug-in (sheath) cannot be completely fixed during loading, sponge tape can be used outside the socket sheath for noise reduction.

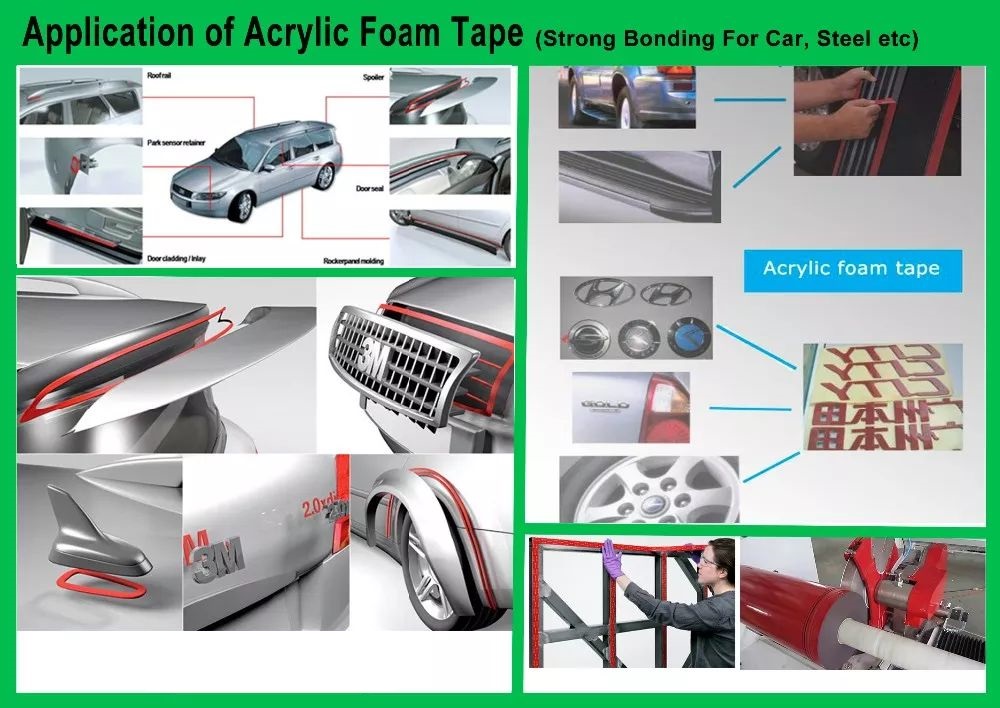

Applications of sponge tape in Automotive Industry
● Roof harness
● Air conditioning harness
● Door harness
● Casketing, cushioning, vibration control in speakers, electronic components and door frames
● Other places requiring shock absorption and noise reduction
