Car wiring harnesses are intricate networks of wires, connectors, and terminals that ensure the smooth functioning of various electrical components in an automobile. Over time, these harnesses might encounter faults or require modifications, necessitating the use of specialized tools for efficient repair and reworking. In the automotive industry, Terminal Removal Tools play a crucial role in addressing wiring issues effectively. This article delves into the significance of Terminal Removal Tools and why they are essential for professionals in the car wiring harness industry.
Contents
1. Understanding Terminal Removal Tools
2. The Advantages of Terminal Removal Tools
3. How to Use Terminal Removal Tools Effectively
4. How to Choose Terminal Removal Tools?
5. FAQS
1. What are Terminal Removal Tools?
Terminal Removal Tools are specially designed instruments that aid in the extraction and insertion of terminals within a wiring harness. These tools come in various shapes and sizes, each catering to different terminal types and sizes. They are primarily used by technicians, engineers, and mechanics to handle automotive wiring with precision and ease.
Terminal removal tools hold significant importance for repairing and reworking at the OEM and after-market levels. These tools are designed to insert and extract terminals from connector housings without damaging them, making electrical repairs and installations much more manageable. Without these tools, attempting to remove terminals could lead to bent or broken pins, causing significant damage and requiring costly replacements. Moreover, terminal removal tools ensure a more efficient and reliable workflow, saving time and effort.
2. Types of Terminal Removal Tools

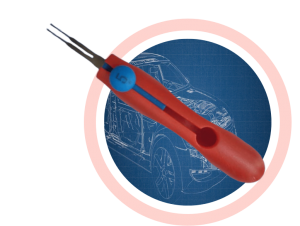

• Flat Blade Removal Tools:
Flat-blade terminal removal tools are designed for terminals with flat blades or tabs. These tools slide alongside the terminal, gently releasing the locking mechanism and allowing for easy removal.

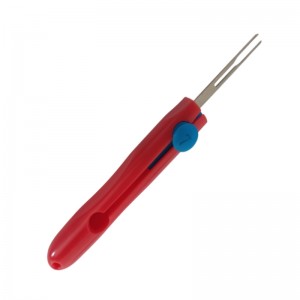

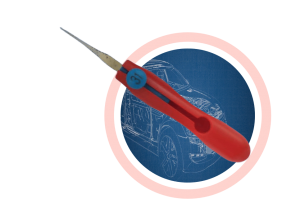

• Pin Extraction Tools:
Pin terminal removal tools are ideal for extracting terminals with cylindrical pins. The tool's unique shape fits around the pin, ensuring a secure grip for safe removal. There are Sigle-Pin Extractor, Double-Pin Extractor, Multi-Pin Extractor.

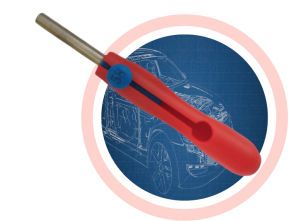

• Round Terminal Extractor:
Round terminal removal tools are used for terminals with rounded connectors. The tool's rounded tip allows for a smooth release of the terminal from the connector.

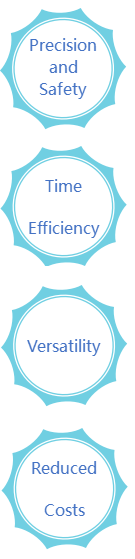

1. Precision and Safety
Terminal Removal Tools provide a high level of precision, ensuring that terminals can be removed without causing any damage to the wiring harness or the connectors. This minimizes the risk of short circuits or electrical malfunctions in the vehicle.
2. Time Efficiency
Repairing or reworking a car's wiring harness can be a time-consuming process. However, with the right Terminal Removal Tools, professionals can complete the task quickly and efficiently, saving valuable time and resources.
3. Versatility
As the automotive industry evolves, new terminal designs and connectors are introduced. Terminal Removal Tools are versatile instruments that can adapt to various terminal types, making them indispensable in handling modern car wiring harnesses.
4. Reduced Costs
Using the wrong tools or improper techniques to remove terminals can lead to irreversible damage, necessitating costly replacements. Terminal Removal Tools reduce the risk of such damages, thus minimizing overall repair costs.
1. Usage method
Using terminal removal tools may seem daunting at first, but with practice, it becomes a straightforward process. Follow these steps for effective terminal removal:
• Identify the Type of Connector and Terminal:
Before using a Terminal Removal Tool, identify the type and size of the connector and terminal to select the appropriate tool for the job. Matching the tool to the connector and terminals ensures a seamless removal process.
• Choose the Appropriate Terminal Removal Tool
Once you know the connector and terminal type, pick the correct terminal removal tool from your toolkit. Having a variety of tools for different connector types will make your work more efficient.
• Safely Remove the Terminal
Gently insert the terminal removal tool into the connector, engaging the locking mechanism. Apply slight pressure to release the terminal while keeping the tool parallel to the connector's axis.
2. 4 Tips and Advice
The process of using a terminal removal tool is fairly easy as explained above. If you feel unsure about using it for the first time, you can watch visual demonstrations of the process in online videos. After practicing a few times, it will become easier and feel like second nature.
Using the wrong terminal removal tool can lead to damage and frustration. Always double-check the connector type and ensure you have the correct removal tool.
Work patiently and avoid applying excessive force, as Excessive force can damage terminals and connectors. Use a gentle, controlled approach when removing terminals.
Keep the terminal removal tools clean and in good condition for optimal performance.
3. 3 Factors to Consider When Buying Terminal Removal Tools
Before purchasing terminal removal tools, keep these factors in mind:
♦ 1. Compatibility with Connectors
Ensure that the tools you choose are compatible with the connectors you commonly work with. Different tools suit different types of terminals.
♦ 2. Ergonomics and Grip
Comfortable grip and ergonomic design are crucial, as they make using the tools for extended periods more manageable.
♦ 3. Durability and Materials
Invest in high-quality terminal removal tools made from durable materials to ensure long-lasting performance.
When investing in terminal removal tools, you have these common brands to consider. They have different quality, reliability and price.
1. Key Extractor you can find from Amazon
They are very cheap and easy to buy. And they can be used for most cars, motorcycles and other electronic devices such as household appliances.
You can have them if you use them for DIY or house application. But we don’t recommend it if you are a professional electric technician in an automotive repair shop or wiring harness factory, as the material is not good enough, and the design does not conform to ergonomics.

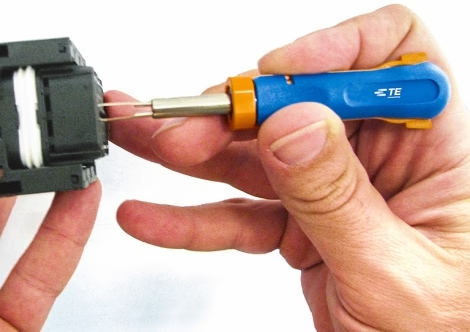

2. TE Insertion and Extraction Tools
They are Top quality, durable, and trusted by professionals. The only disadvantage is that price is too high. I suggest you buy it if you have enough budget.

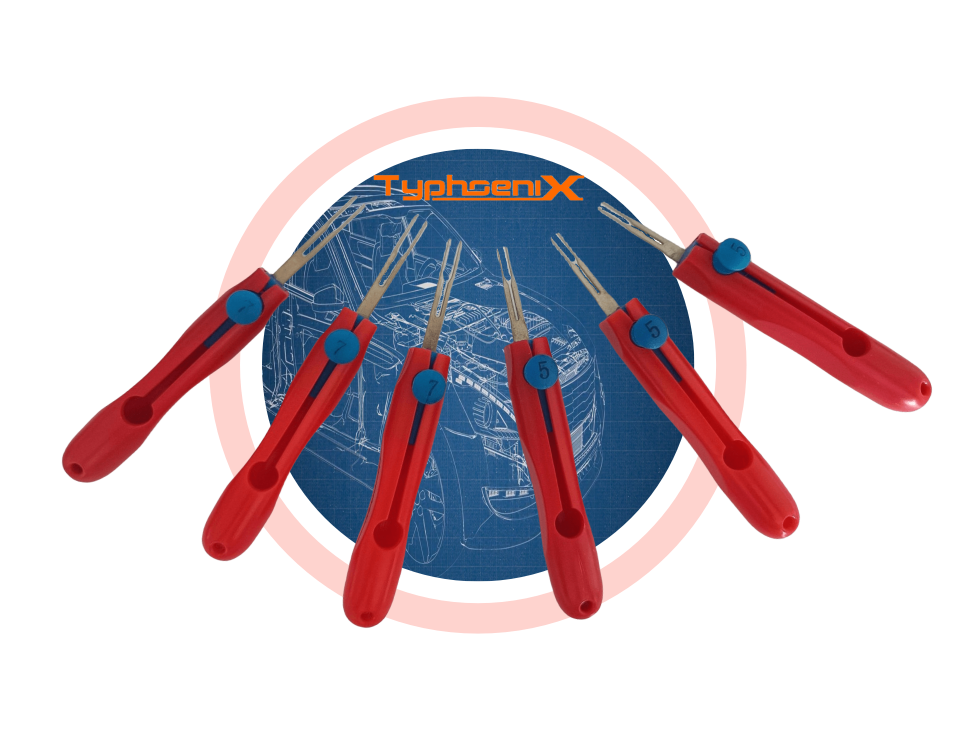

Typhoenix offers a wide range of terminal removal tools designed to simplify the removal process even for complex connectors. They are made of high-quality stainless steel and plastic, known for their durability and precise performance. Professionals trust this brand for its excellent track record.
These terminal removal tools also feature a comfortable grip and ergonomic design, making them easy to use for extended periods of time. This enhances their usability and helps prevent hand and wrist fatigue. These types of handles are also often individually numbered. The numbers correspond with an application chart, so you don’t have to guess which tool to use for which purpose, easy for you to select the correct tools in a short time.
Terminal Removal Tools are essential equipment for professionals in the car wiring harness industry. They can disconnect various connections in an easy and simple way. Their precision, efficiency, and versatility make them indispensable in handling complex wiring systems. Investing in quality Terminal Removal Tools can significantly enhance productivity and safety, enabling efficient repair and reworking of automotive wiring harnesses.
There are various options available at typhoenix, you can find terminal removal tools for a variety of connectors, including TE, AMP, Delphi, Molex, Hulane, KET, Amphenol and etc., Simply insert the pin removal tool between the terminal and connector body to easily remove the terminals. For car wiring harness reworking or repairing, using the proper removal tools are crucial to avoid damaging the wire connectors, when you need to replace a terminal or re-splice and crimp a wire or terminal. Otherwise, this can result in additional labor and replacement costs. The tools come in different sizes and shapes to accommodate various connectors and wires, welcome to contact us to get the catalogue.
Pin and terminal removal tools are part of our wide assortment of automotive wiring harness tools. All of our removal tools can be ordered in small quantities but they also come with bulk discounts. For additional information and products, visit the links below:
Terminal Removal Tools find applications in various industries where wiring harnesses are used, including aerospace, marine, and electronics.
While it is possible to use standard pliers in some cases, Terminal Removal Tools offer better precision and safety, especially for delicate terminals.
Yes, Terminal Removal Tools are equally useful for both original wiring harness manufacturers (OEMs) and after-market repairs.
Terminal Removal Tools should be kept clean and free from debris for optimal performance. Regular maintenance, such as lubrication, is recommended.
Quality Terminal Removal Tools can be found at automotive tool suppliers, specialty stores, or online retailers. Ensure you choose reputable brands for reliable tools.
