If you have ever worked in automotive wiring harness or are interested in it, then you must know the connector housing. They are usually small, but why are they just a small component in the automotive electrical system, but they are important and indispensable?

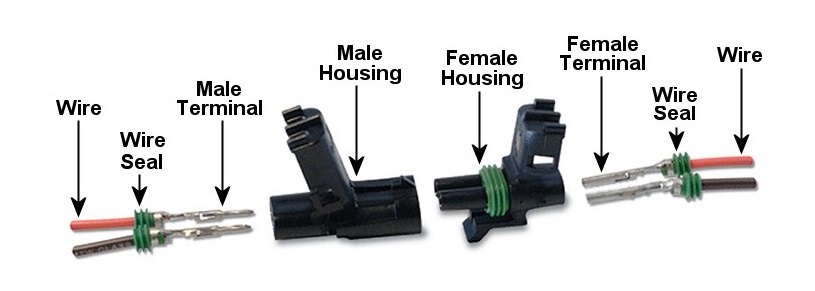

In the car wiring harness system, car connectors are important components that connect various electrical and electronic devices in the car. The automotive connector housing is the housing of a connector that provides mechanical protection for the internal insulation mounting plate and terminals, and provides alignment when inserting male and female terminals, thereby securing the connector to the device. So it is a very important component of the automotive wiring harness system.
In this article, we will delve into what is an automotive connector housing, why it is important, and the different types available.
1. What is Connector Housing?
The connector housing is a protective housing used to encapsulate electrical connectors, providing safe connections and environmental protection. It is typically used to protect connectors from moisture, dust, and vibration, which can weaken the connection over time.
The connector housing comes in various shapes and sizes, depending on the type of connector and application requirements. They are usually made of materials such as plastic or metal and can be customized based on temperature, chemicals, and other environmental factors.
2. Why is Connector Housing Important in Automotive Systems?
The connector housing plays a crucial role in the automotive electrical system. The sensitivity of electronic components makes it crucial to protect connections from environmental influences. Failure to do so may lead to issues such as corrosion, insulation short circuits, and system failures, all of which can affect safety and reliability. Connectors without a casing are more susceptible to damage from moisture, heat, and other environmental factors. Over time, such damage may reduce the performance of the system, not to mention potential short circuits and other issues that increase safety risks.
3. Different Types of Connector Housing
According to different materials, it can be divided into:
A. Plastic connector housing
Plastic connector housings are widely used in automotive applications due to their low cost and ease of customization. They come in various shapes, sizes, and materials, such as PVC, ABS, PP, etc. They are lightweight, easy to install, and provide good electrical insulation, making them an ideal choice for medium to low temperature applications.
B. Metal connector housing
Metal connector housings are used in applications that require high durability, reliability, and conductivity. They are made of materials such as aluminum, stainless steel, or copper alloy, providing excellent shielding and reducing the risk of electromagnetic interference (EMI) and radio frequency interference (RFI). They are widely used in automotive applications that require resistance to harsh conditions, such as under hood components and fuel injection systems.
In addition, the automotive industry uses several types of connector housings based on various factors such as size, design, temperature range, and locking mechanisms. Here are some of the most common connector housings used in the two automotive industries.
A. Double locking connector housing
The dual locking connector housing provides additional safety and stability, thanks to the dual locking mechanism, where both the connector and locking clip can secure the housing. They are widely used in high vibration automotive environments to prevent accidental disconnection and damage.
B. Waterproof connector housing
The waterproof connector housing is designed to protect automotive connectors from moisture, dust, and other factors that may weaken the connection and shorten component life. They are equipped with waterproof gaskets or seals, providing a high degree of waterproof protection. They are widely used in automotive applications, such as outdoor lighting, ships, and other high humidity environments.
Typhoenix is proud to offer a wide range of wholesale automotive electrical connectors. These connectors provide a reliable and secure way to connect various electrical components and systems in vehicles. We carry a variety of connectors to accommodate different wire gauges, configurations, and applications. Our automotive electrical connectors are made from high-quality materials and are designed to withstand tough environments and conditions. They are easy to install and provide a strong and durable connection to help ensure reliable performance of your vehicle’s electrical system. Whether you need connectors for your engine, lighting, or audio system, we have you covered. In addition to our selection of automotive electrical connectors, we also offer excellent customer service and competitive pricing. Our team of experts is available to help you find the right connectors for your specific needs and answer any questions you may have about our products. We are committed to providing our customers with the best products and service possible, and we strive to exceed your expectations. If you’re looking for quality wholesale automotive electrical connectors, look no further than our company. With our extensive selection, quality products, and exceptional customer service, we are your go-to source for all your electrical connector needs. Contact us today to learn more about our products and how we can help you keep your vehicle running smoothly.
