0297 Series Littelfuse MINI® Blade Fuses Rated 32V
Specification
Brand: Littelfuse
Series: MINI Sn fuse/ MINI Blade Fuses
Interrupting Rating: 1000A @ 32 VDC
Voltage Rating: 32 VDC

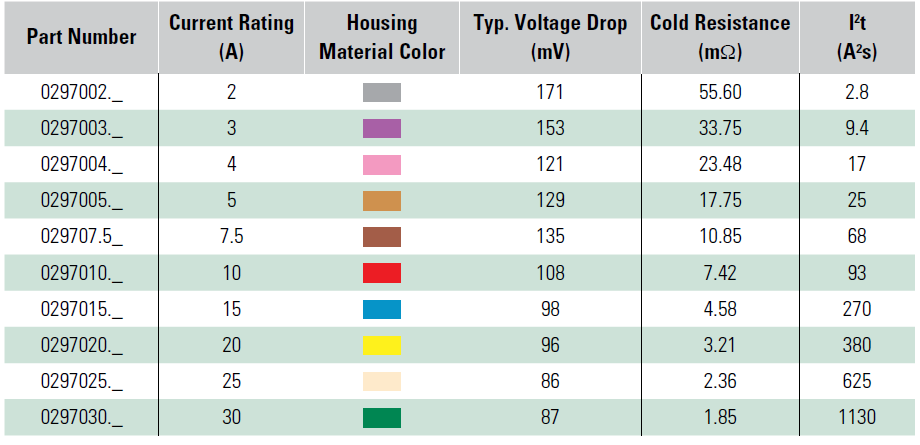

Rated current: 2 amp /3 amp /4 amp /5 amp /7.5 amp /10 amp /15 amp /20 amp /25 amp /30 amp
Component Level Temperature Range: -40˚C to +105˚C
System Level Temperature Range: -40˚C to +85˚C
( 105°C and 85°C are typical system level temperature requirements.)
Terminals: Sn plated zinc alloy
Housing Material: PA66
Complies with: SAE J2077, ISO 8820-3

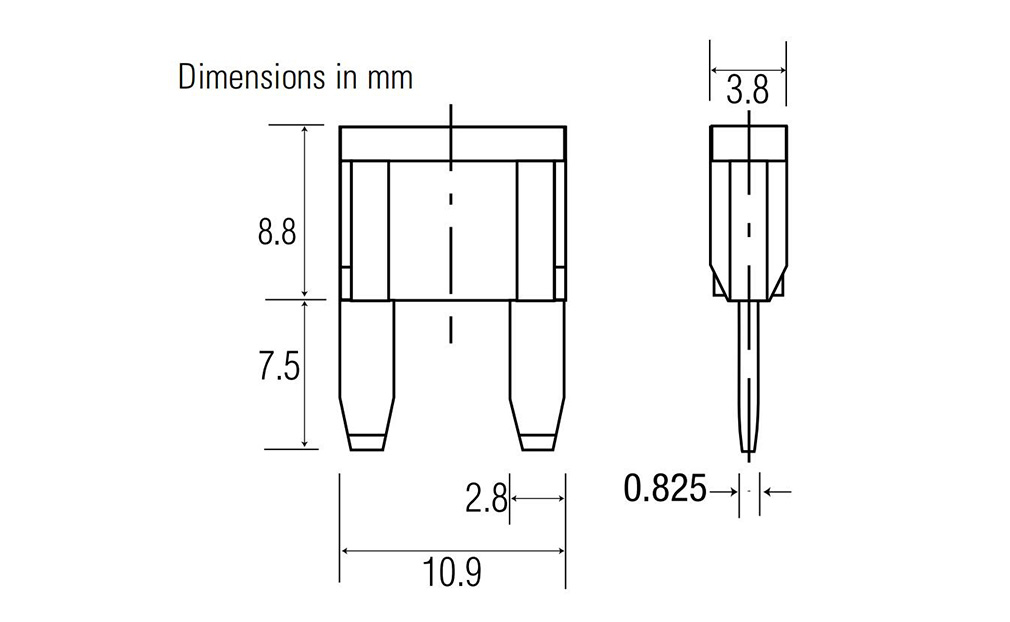

Dimensions

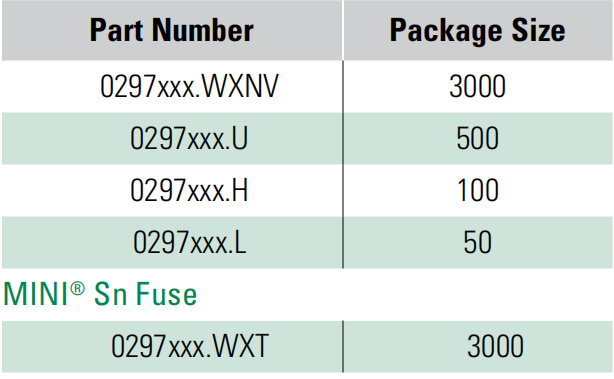

Packing
There are 4 packing in Littlefuse: 3000 pcs/carton, 500 pcs/carton, 100 pcs/carton and 50 pcs/carton.

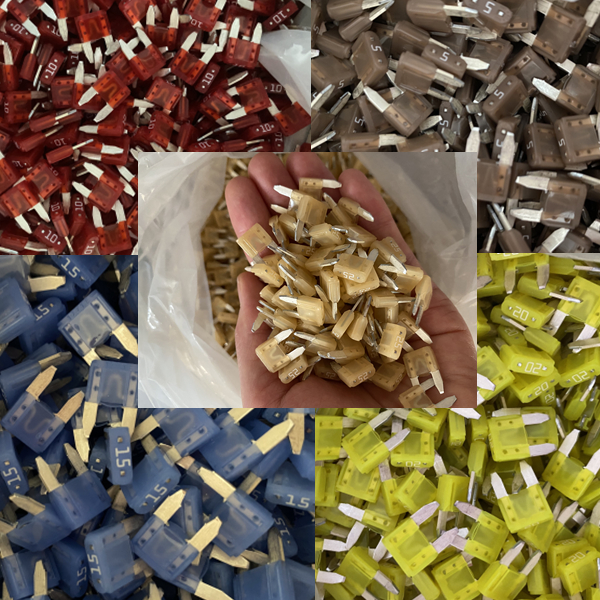

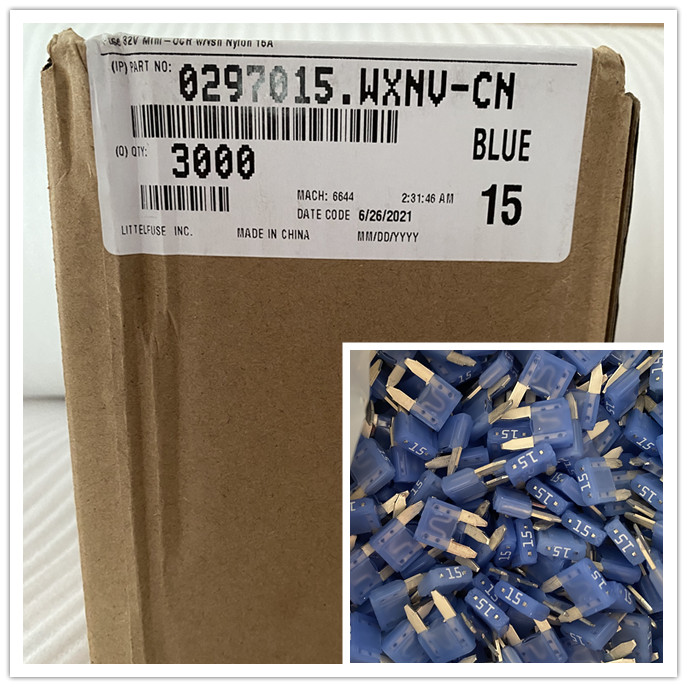

We only sell the 3000 pcs per carton, see the packing and packages below:
Typhoenix supplies 100% genuine Littelfuse brand car fuses at a low price. And we have plenty of stock, your order could be made delivery within 3-5 working days. Feel free to contact us for more information.
What do automotive fuses do？
Automotive fuses are installed in the fuse box. It is usually made of low melting point lead-tin alloy, zinc, copper and silver filiform or sheet materials. It is a disposable element connected to the circuit to protect the circuit.
When the current on the circuit is abnormal or more than twice its rated current, the metal wire or sheet will be blown due to high temperature, resulting in an open circuit and interruption of current to protect the circuit from injury.
Types of automobile fuses
1. Blade Fuse
For small current short-time pulse current load. This type is the most common in cars. There are eight kinds:
1.1 MICRO 2 Blade Fuse 32V
1.2 MICRO 3 Blade Fuse 32V
1.3 LP-mini (Low Profile MINI) Fuses Rated 58V
1.4 MINI Blade Fuse Rated 32V
1.5 MINI Blade Fuse Rated 58V
1.6 ATOF Blade Fuse Rated 32V
1.7 MAXI Blade Fuse Rated 32V
1.8 MAXI Blade Fuse Rated 58V

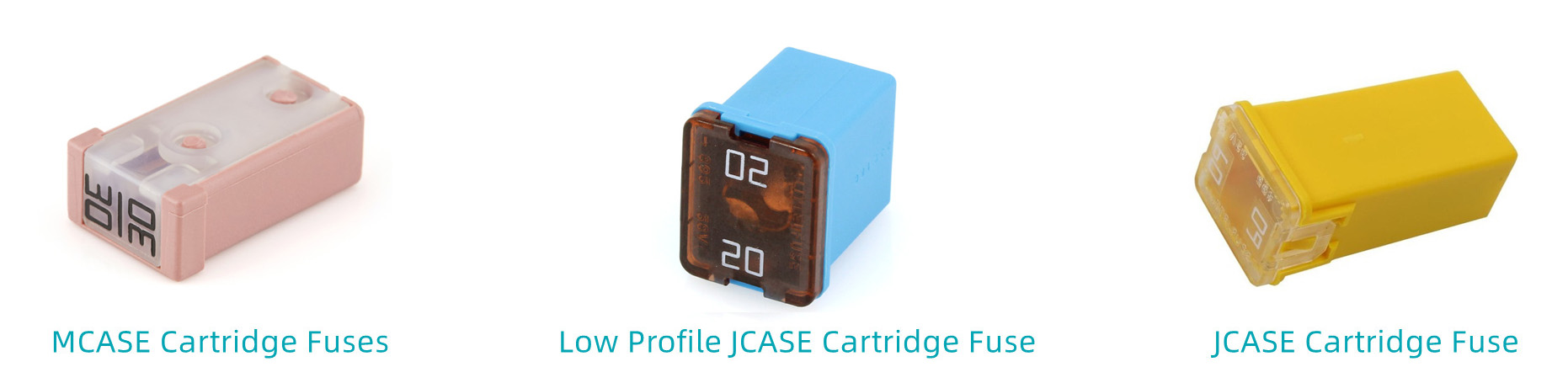

2. Cartridge Fuses
For high current, long-time pulse current and lock current load, There are three kinds:
2.1 MCASE Cartridge Fuses Rated 32V
2.2 Low Profile JCASE Cartridge Fuse Rated 58V
2.3 JCASE Cartridge Fuse Rated 32V
3. PAL Fuses
For straight leg slots or bolt fixing.

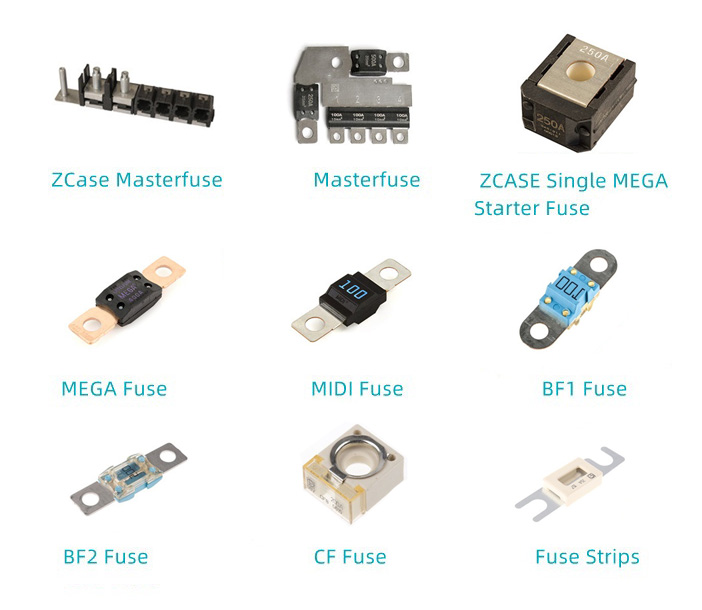

4. High Current Fuses
For high current wirings protection. There are many kinds, such as:
4.1 ZCase Masterfuse
4.2 Masterfuse
4.3 ZCASE Single MEGA/Starter Fuse
4.4 MEGA Fuse
4.5 MIDI Fuse
4.6 BF1 Fuse
4.7 BF2 Fuse
4.8 CF Fuse
4.9 Fuse Strips
We also provide High quality In-Line Fuse Holder for these 0297 series Littelfuse:
